4 Channels Interpolating Scanner & Panner

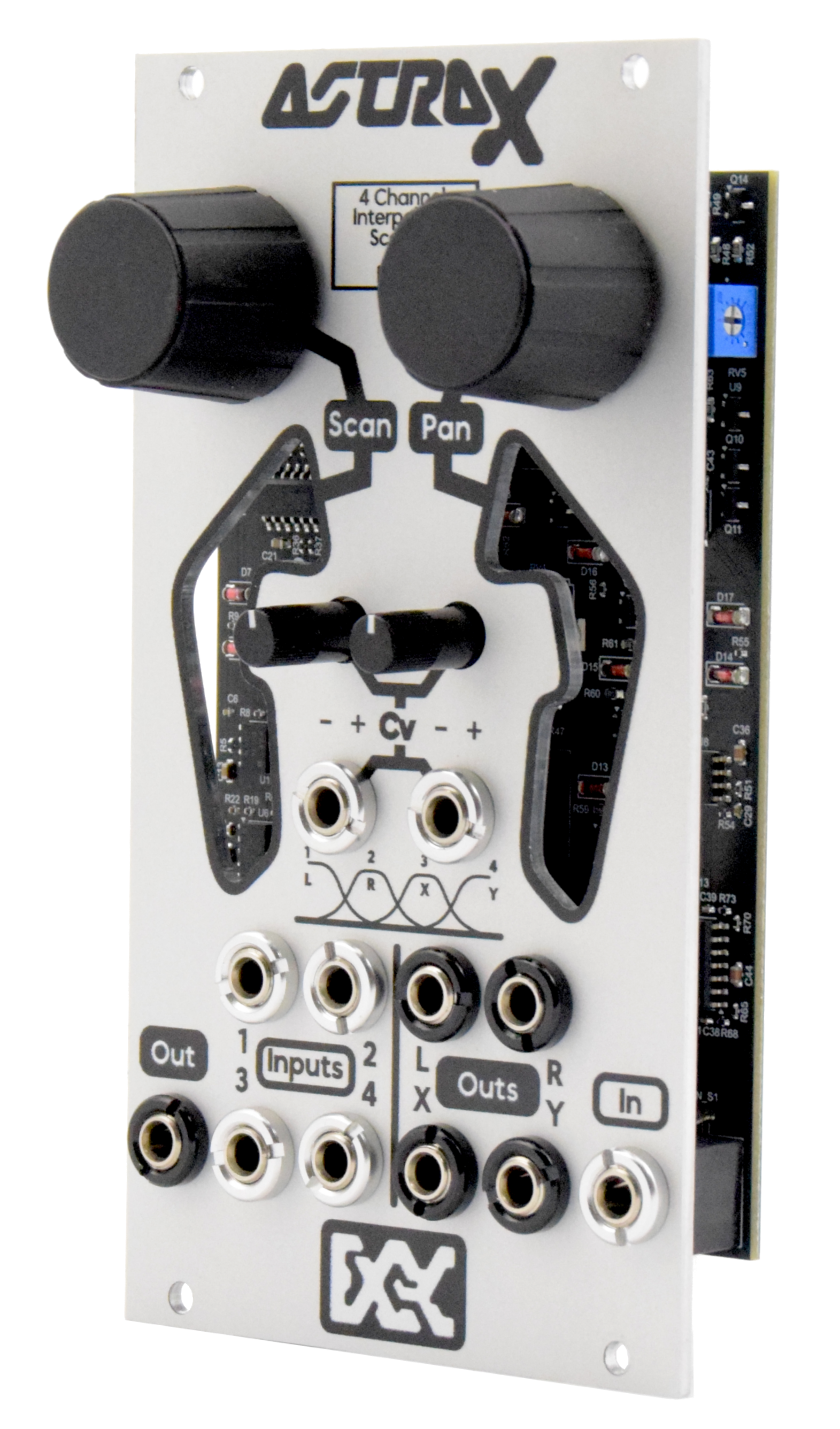

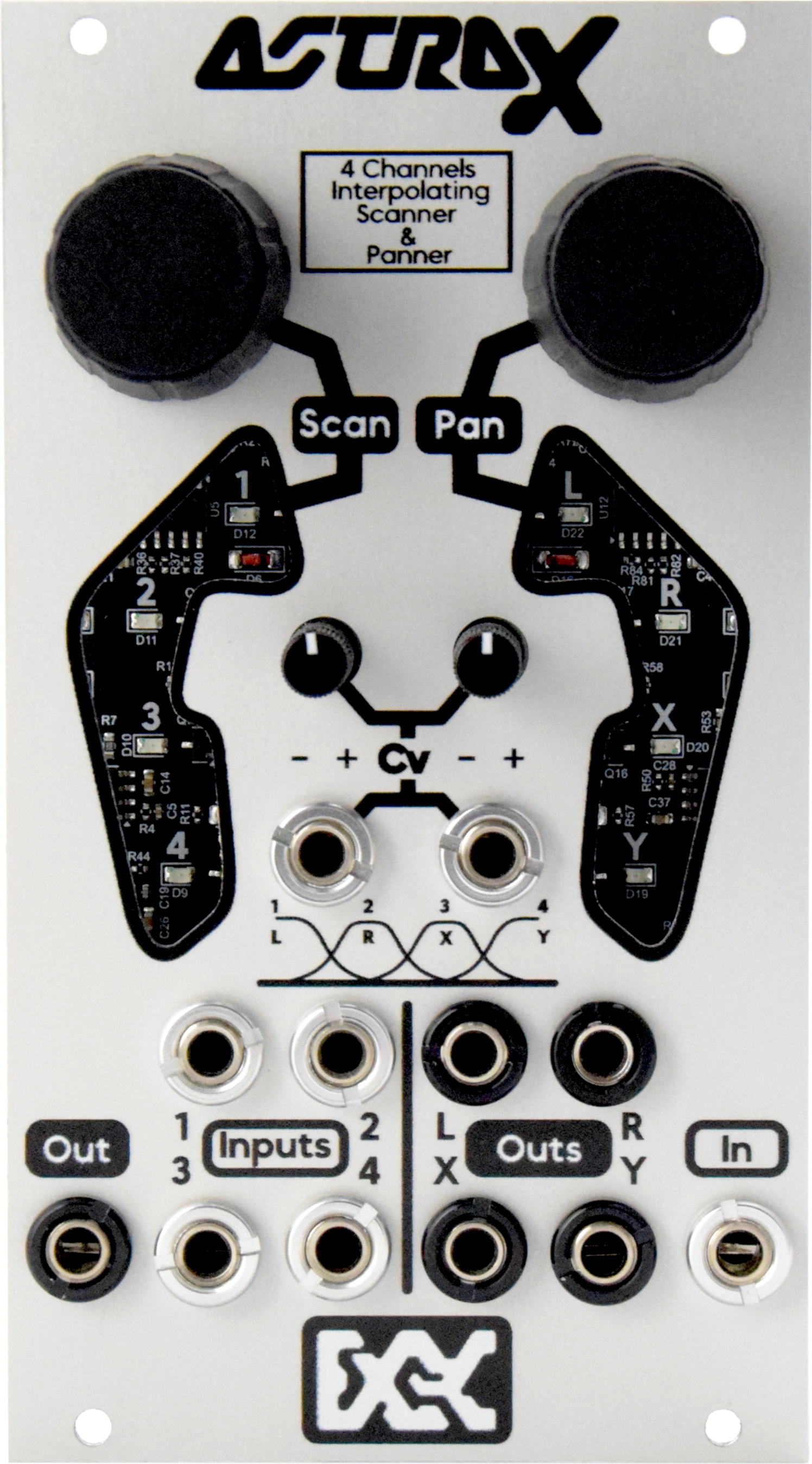

Astrax is a versatile and creative fully analog Eurorack module designed to expand how you blend, route and spatialise both audio and control voltages in your modular setup. Built around two complementary sections Scanning and Panning Astrax gives you hands-on control over dynamic signal movement and complex modulations.
On the Scanner side, Astrax takes four independent inputs and blends them into a single output. As you turn the control or inject a CV signal, the module smoothly interpolates between each input, letting you morph through audio or modulation sources with fluid precision. Whether you’re crossfading between oscillators, mixing multiple CV sources, or creating evolving textures, the Scanner offers an intuitive way to navigate multiple signals.
Flipping to the right side reveals the Panner section, which routes one input into up to four outputs. Use it as a conventional stereo panner or explore quadraphonic layouts by placing a sound source around four distinct outputs.
Both sections are voltage-controllable and include attenuverters and offset controls, so you can finely shape the influence of incoming CV.
Features
-Two 4-channels bidirectional voltage-controlled interpolators
-4-1 Scanner/1-4 Panner
-Compatible with both audio and CV inputs
-Includes attenuverters and offset controls for precise CV input adjustments
-Reverse polarity protection.
-Supply : +12V 31mA / -12V 27mA
-Size : 14HP
-Depth : 21mm
